NB-IoT / LTE-M water-meter gateway
IPS-530
Water Meter Gateway

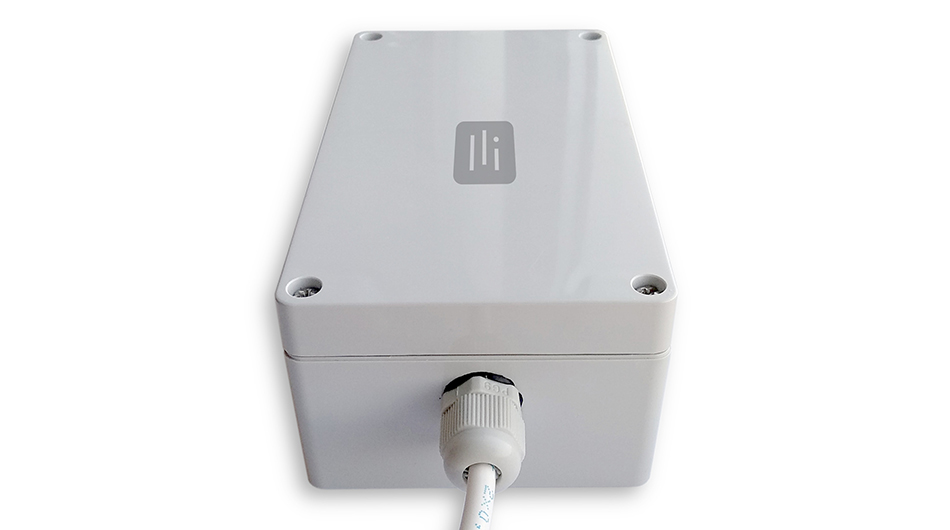

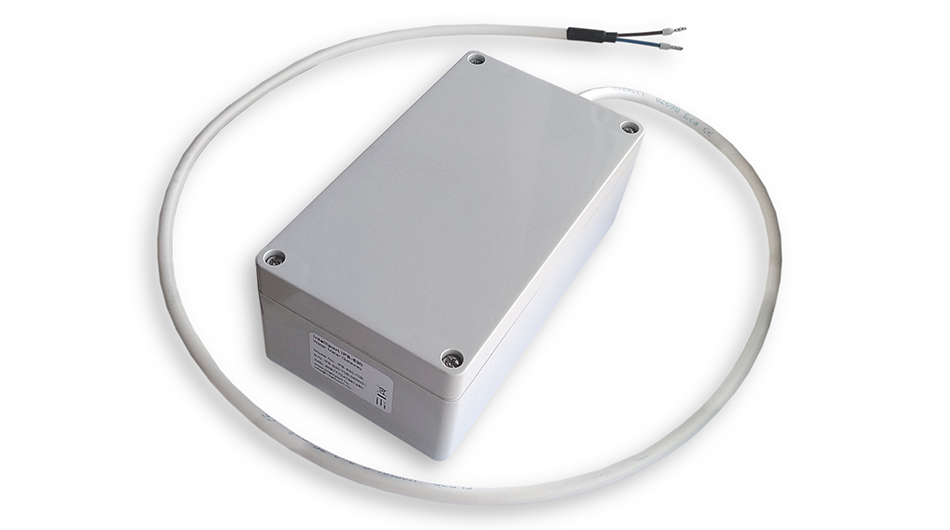

A battery-powered IP68 gateway that transfers data from pulse-output water meters over NB-IoT or LTE-M
Pulse input10–15 yearsIP68
Product role
Consumption and health data from the water meter to the head-end
IPS-530 counts water-meter pulses, logs consumption and events locally, then communicates over the mobile network on schedule or when an alert occurs
Water meterPulse output
IPS-530Pulse counting, event logging and data transfer
NB-IoT or LTE-M
Head-end systemConsumption data, logs and alerts
Typical applications
Water-meter data directly to the central system
Pulse-based consumption metering is combined with mobile connectivity, local logs and health monitoring
Utility consumption monitoring
Hourly integration and daily reporting by default.
Leakage alerting
Configurable leakage alerts derived from consumption patterns.
Tamper and health monitoring
Report magnetic interference, movement, opening and low battery.
Head-end integration
Scheduled and event-driven communications using ABL or DLMS/COSEM formats.
01 / 02
Key capabilities
Long operation with event-driven supervision
LPWAN connectivity is complemented by a replaceable battery, IP68 enclosure and configurable alerts
Pulse-based metering
Configurable pulse weight and consumption registers.
Direct LPWAN connectivity
NB-IoT and LTE-M with broad band support, including B31/B72 options.
Long battery life
10–15 years depending on reporting frequency, with replaceable battery.
IP68 enclosure
Standalone enclosure with internal or optional external antenna.
Alert logic
Leakage, blockage, Qmin/Qmax, tamper and device-health alerts.
Bidirectional data handling
PUSH logs and alerts plus response-based PULL settings.
Technical specification
From meter input to head-end message
Sensor, radio, data-handling and environmental characteristics are presented separately
Metering and sensorspulse · health · alerts
Consumption meteringWater-meter pulse input with configurable pulse weight
Health sensorsMagnetic tamper, motion, enclosure opening and temperature
AlertsBlockage, leakage, Qmin/Qmax, removal, opening and low battery
Mobile communicationNB-IoT · LTE-M · bands
TechnologyNB-IoT and LTE-M (Cat-M1/eMTC)
LTE-M bandsB1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B31/B66/B72/B85
NB-IoT bandsB1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B31/B66/B85
Data collection and communicationslogs · PUSH/PULL · protocol
Default scheduleIntegration period: 1 hour; messaging period: 1 day
Scheduled PUSHData log and technical heartbeat
Event-driven PUSHAlert and manually initiated heartbeat messages
FormatABL or DLMS/COSEM (EN 62056)
Enclosure and energyIP68 · battery · temperature
EnclosureStandalone housing with internal or optional external antenna
ProtectionIP68
Temperature−25…+70 °C
BatteryReplaceable, expected 10–15 year life depending on messaging frequency
Next step
Select the right IPS-530 configuration
Network, interfaces, power supply and enclosure can be adapted to the installation environment
Useful for the consultationWater-meter pulse output and pulse weightIntegration and messaging periodsNB-IoT/LTE-M network and antennaHead-end protocol and alert rules
