On-street smart parking
Real-time occupancy status for each parking space.
NB-IoT parking sensor · radar + magnetic detection
IPS-404
NB-IoT Smart Parking Radar Sensor Dual
An in-road NB-IoT parking sensor combining radar and magnetic vehicle detection for real-time occupancy data
≥99.9% accuracy5+ year battery lifeIP68
Product role
Real-time occupancy data from every parking space
IPS-404 uses two detection technologies to determine occupied or free status, sending events and heartbeats directly over NB-IoT
Parking spaceRadar · magnetic sensing
IPS-404Occupancy detection and event reporting
NB-IoT
Parking platformOccupancy data and sensor management
Typical applications
Occupancy data from navigation to operations
The sensor provides real-time status for parking guidance, signage and analytics systems
Parking guidance
Data source for navigation, signage and management systems.
Parking analytics
Event data for utilisation and turnover analysis.
Vehicle identification
Optional BLE/iBeacon-based vehicle association.
Remote sensor operations
Central monitoring of heartbeat, battery, signal and firmware.
01 / 03
Key capabilities
Two sensing principles with direct mobile connectivity
Radar, magnetic detection, NB-IoT and remote supervision form a complementary system
Dual detection
Combined radar and magnetic sensing provides at least 99.9% average accuracy.
NB-IoT connectivity
Band 20, embedded chip SIM and 23 dBm output power.
Intelligent energy management
Inactive and active operation, daily heartbeat and remote energy-profile tuning.
Replaceable inner unit
The sealed electronics can be removed from the outer cylinder without drilling again.
Open integration
Intelliport Sensor Management Platform or a third-party data-collection system.
Optional BLE
Vehicle identification can be added with iBeacon tags.
Technical specification
Detection, radio and installation
Technical data separately covers sensing, communications, mechanics and energy
Detection and applicationoccupancy · accuracy · BLE
Vehicle detectionRadar and magnetic technology
Average accuracyAt least 99.9%
Output dataReal-time occupied / free parking-space status
Vehicle identificationOptional BLE with an iBeacon tag in the vehicle
NB-IoT and managementBand 20 · chip SIM · remote supervision
Mobile network3GPP NB-IoT, Band 20 (800 MHz)
RadioEmbedded chip SIM; 23 dBm; −129 dBm sensitivity
ManagementIntelliport Sensor Management Platform or third-party system
Remote functionsTuning, firmware upgrade, battery and network monitoring
Mechanical and energyIP68 · 53 mm · 5+ years

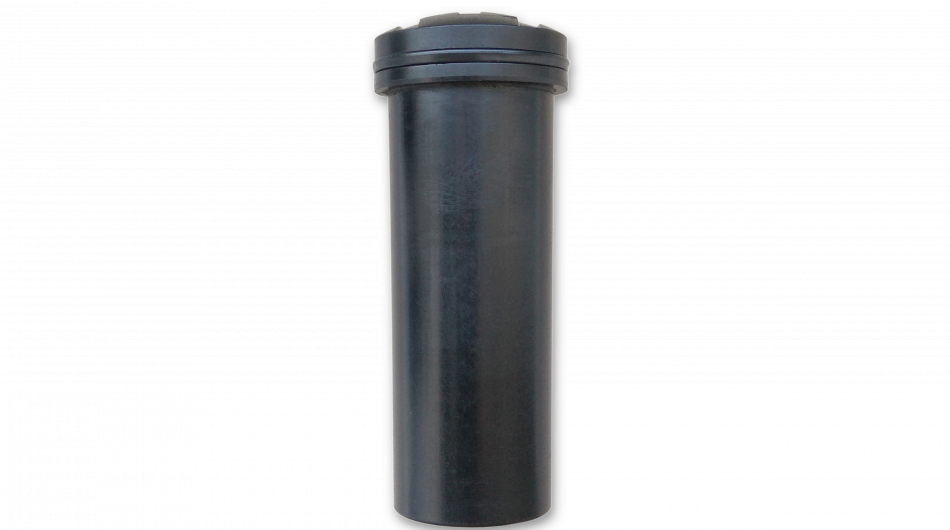

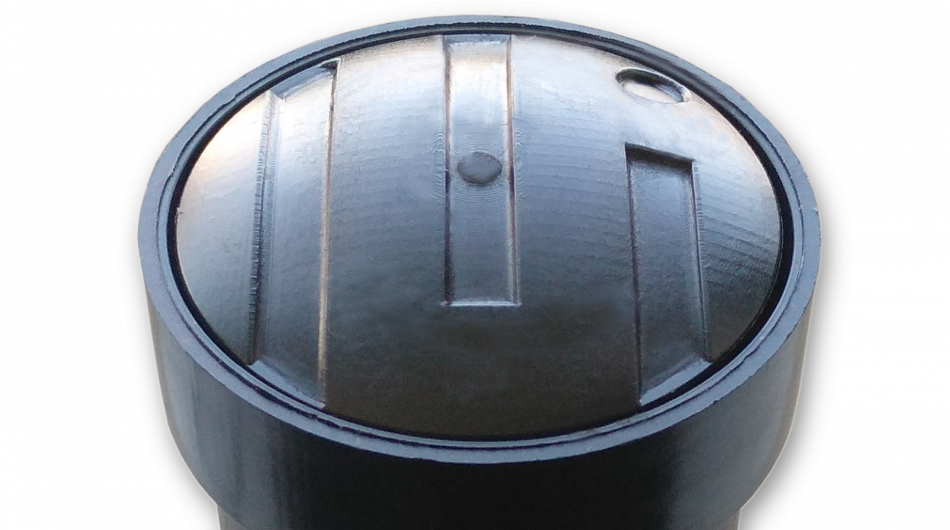

ConstructionBonded outer cylinder and replaceable sealed inner unit
Size53 mm diameter, 121 mm height
Environment−40…+85 °C; IP68
BatteryNon-rechargeable; 5+ years on average with one daily heartbeat, one annual firmware update and 16 parking events per day on average
Next step
Select the right IPS-404 configuration
Network, interfaces, power supply and enclosure can be adapted to the installation environment
Useful for the consultationNumber and geometry of parking spacesNB-IoT coverage and Band 20 availabilityRadar-only or combined detection profileCentral platform and integration interface
