Replace fixed links with encrypted mobile backhaul.
410/450 MHz industrial IoT router
IPS-230
IoT Router Pro
A rugged industrial router for LTE-M and NB-IoT connectivity, including 410/450 MHz bands, with two Ethernet ports and central management
LTE-M / NB-IoTeUICCTPM
Product role
Secure mobile backhaul for low-data industrial systems
IPS-230 combines wide-area 410/450 MHz LTE-M and NB-IoT connectivity with two Ethernet ports, industrial routing, VPN and remote management
Industrial endpoints2× Ethernet
IPS-230Industrial routing, VPN and remote management
LTE-M or NB-IoT
Central systemApplication and device management
Typical applications
Low-data, wide-coverage industrial connectivity
Combines the reach of 410/450 MHz LTE-M and NB-IoT with industrial routing and security
Substation and smart grid
Connect field controllers to central systems without trenching.
Water utility and remote site
Level, pressure and flow telemetry without fixed connectivity.
Smart-city infrastructure
Mobile connectivity for lighting, parking and urban endpoints.
Building automation
Secure backhaul for HVAC, access-control and fire-alarm systems.
01 / 05
Key capabilities
From field Ethernet to a protected mobile data path
Two Ethernet ports, eSIM, VPN and central management are provided in a compact router
410/450 MHz support
LTE-M and NB-IoT band sets including B31/B72/B87/B88.
Industrial networking
IPv4/IPv6, firewall, VLAN, QoS, NAT and static or dynamic routing.
Hardware-backed security
TPM, device certificate, EAP-TLS and RADIUS authentication.
VPN connectivity
IPsec, RRI and GRE for protected data paths.
Remote operations
Web UI, SSH, SNMP, LwM2M and Intelliport M2M Management Platform.
Indoor and outdoor versions

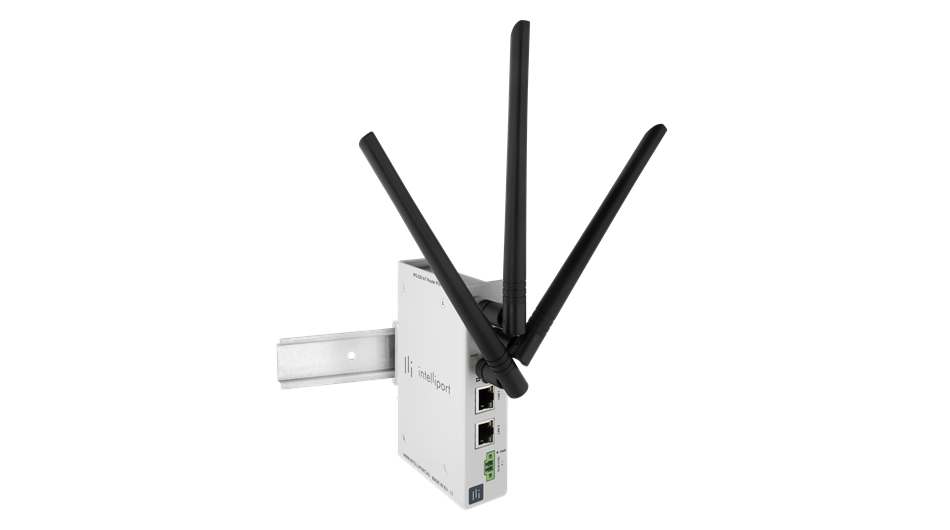

DIN-rail IP30 and wall- or pole-mounted IP67 variants.
Technical specification
From radio to standards status
Network, security, management and environmental data are grouped separately
Mobile networkLTE-M · NB-IoT · LTE Cat-1
LPWAN bandsB1/B3/B5/B8/B20/B28/B31/B72/B87/B88
LTE Category 1B1/B3/B7/B8/B20 with 3G and 2G fallback
SIMeUICC (eSIM)
Interfaces and networkingEthernet · routing · VPN

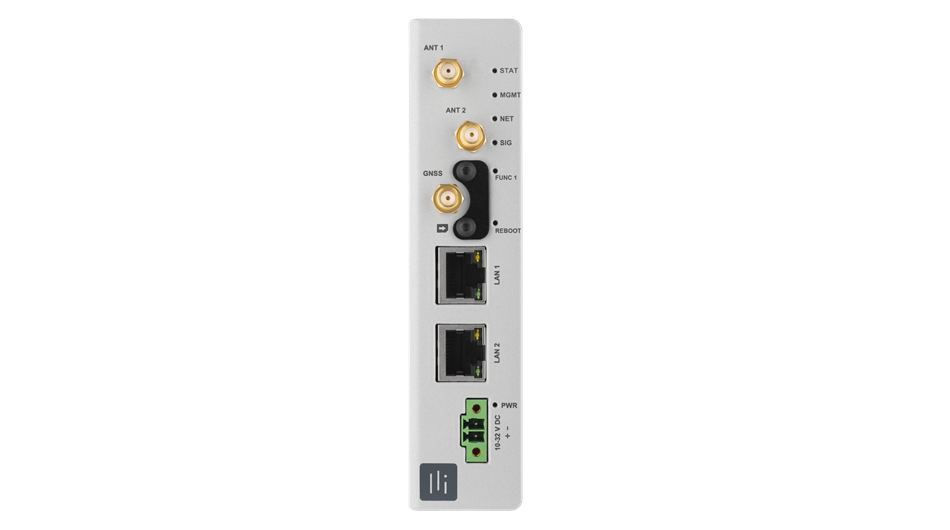

Ethernet2× Ethernet ports, IEEE 802.1X authentication
Network servicesIPv4/IPv6, NAT, DHCP, DNS, NTP, FTP, VLAN and QoS
Routing and VPNStatic routing, BGP/NHRP/OSPF, IPsec, RRI and GRE
SupervisionHardware watchdog, syslog and EEPROM
Security and managementTPM · certificate · remote operations
IdentityTPM, device certificate (EAP-TLS), RADIUS and user management
ManagementWeb UI, SSH, SNMP, LwM2M and Intelliport M2M Management Platform
Standards statusCE/RED and IEC 62443-4-2 compliance: confirm when requesting a quote
Enclosure and powerIP30 · IP67 · 8–36 VDC

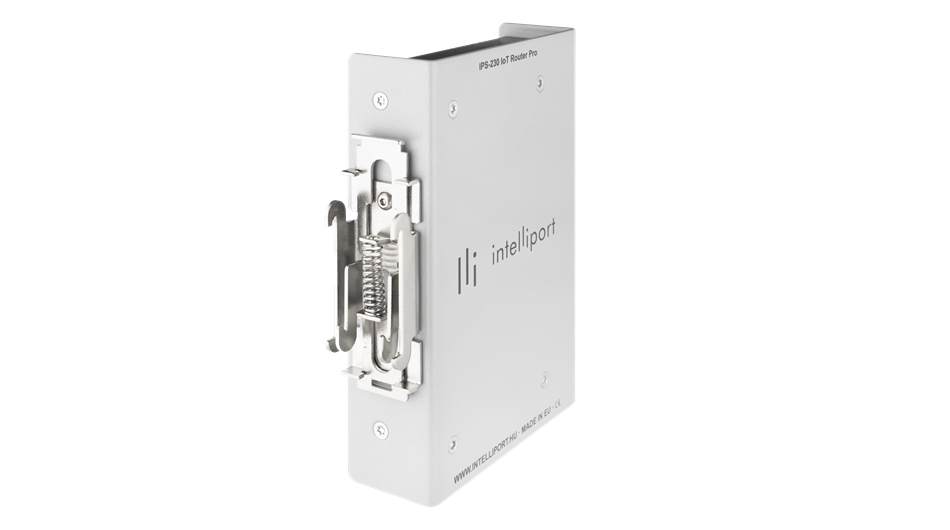

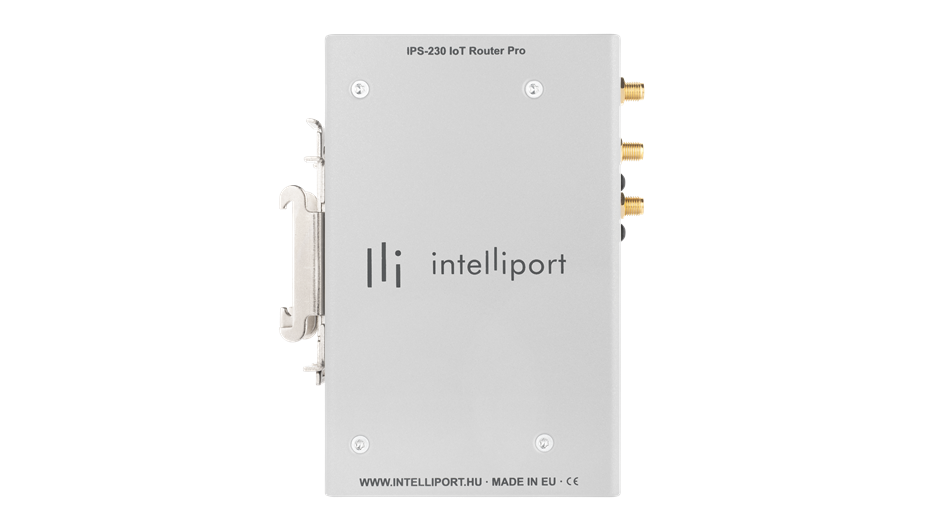

Indoor versionAnodised aluminium; DIN rail or desktop; IP30
Outdoor versionPlastic housing; wall or pole; IP67
Temperature−30…+70 °C
Power8–36 VDC; 230 VAC option outdoors; maximum 7 VA
Next step
Select the right IPS-230 configuration
Network, interfaces, power supply and enclosure can be adapted to the installation environment
Useful for the consultationRequired 410/450 MHz band and operatorEthernet endpoints and traffic profileVPN, VLAN and authentication requirementsIndoor or outdoor installation and power
