Cellural Network Compatibility

• LTE-A Cat-6 variant*
  • LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32
  • LTE TDD: B38/B40/B41
  • 2×CA:
    • B1+B1/B5/B8/B20/B28
    • B3+B3/B5/B7/B8/B20/B28
    • B7+B5/B7/B8/B20/B28
    • B20+B32; B38+B38; B40+B40; B41+B41

• 3G WCDMA: B1/B3/B5/B8
  • LTE Cat-4 variant*
  • 4G LTE FDD: B1/B3/B5/B7/B8/B20
  • 4G LTE TDD: B38/B40/B41
  • 3G: UMTS/HSPA+: B1/B5/B8
  • 2G: GPRS/EDGE: B3/B8

• LTE 450MHz (Cat-4) variant
  • 4G LTE Cat-4 FDD: B3/7/20/31/72

• LTE Cat-1 variant*
  • 4G LTE Cat-1: B1/B3/B7/B8/B20
  • 3G: UMTS/HSPA+ B1/B8
  • 2G: GPRS/EDGE B3/B8

• LPWAN variant*
  • LTE CAT-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/ B27/B28/B31/B66/B72/B85 (incl. LTE-M 450MHz)
  • LTE NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/ B31/B66/B85 (incl. LTE-M 450Mhz)
  • 2G: GPRS/EDGE: B2/B3/B5/B8

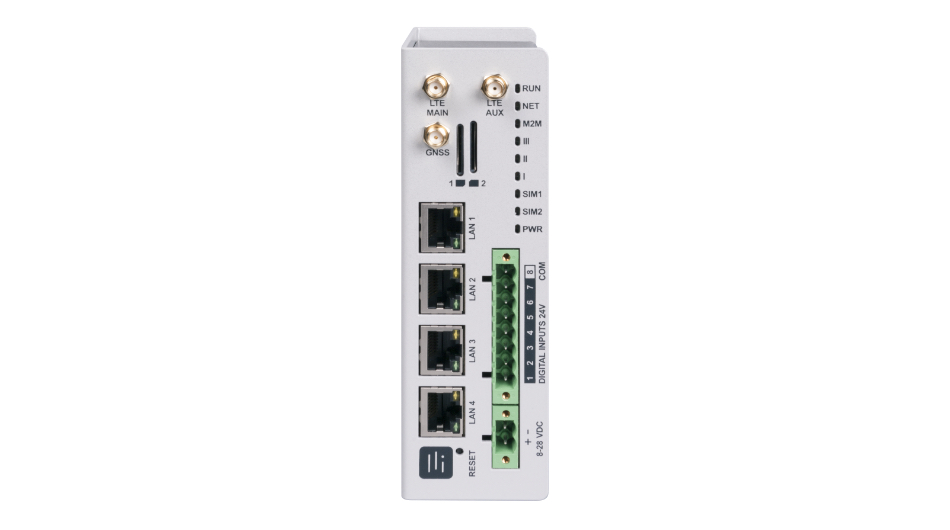

Ethernet Interface

• 3 x Ethernet LAN port

• + 1 x Ethernet LAN/WAN port (configurable)

• IEEE 802.1x authentication

WIFI Access Point (optional)

• Standard: IEEE802.11b/g/n

• Frequency Range: 2.400 ~ 2.483GHz

• Security

• WEP Open System

  • WEP Shared Key, PSK

  • WPA-PSK/WPA2-PSK Mixed Mode

  • WPA2-PSK

  • WPA2-EAP / WIFI-Enterprise / IEEE 802.1x authentication

  • MAC Filtering

Digital Inputs (optional)

• 7 x digital inputs

• galvanically isolated

• terminal block

GNSS Positioning (optional, only in *variants)

• GPS

• GLONASS

• BDS

• GALILEO

System

• Built in hardware watchdog

• Built in network watchdog with failover management (dual SIM)

• TPM (Trusted Platform Module)

• Device certificate (EAP-TLS)

• RADIUS-based authentication

• User management

• Secure boot (optional)

• IPv4, IPv6

• Internal and external syslog

• Firewall, Zones, Port Forwarding, Traffic Rules

• NAT, DHCP

• DNS, NTP, FTP

• VPN, IPSec, RRI, GRE

• VLAN

• QoS

• Static Routing

• Dynamic Routing: BGP, NHRP, OSPF, etc.

Management

• Intelliport M2M Management Platform

• Local and remote management via web user interface and SSH

• SNMP standard monitoring

• LwM2M (optional)

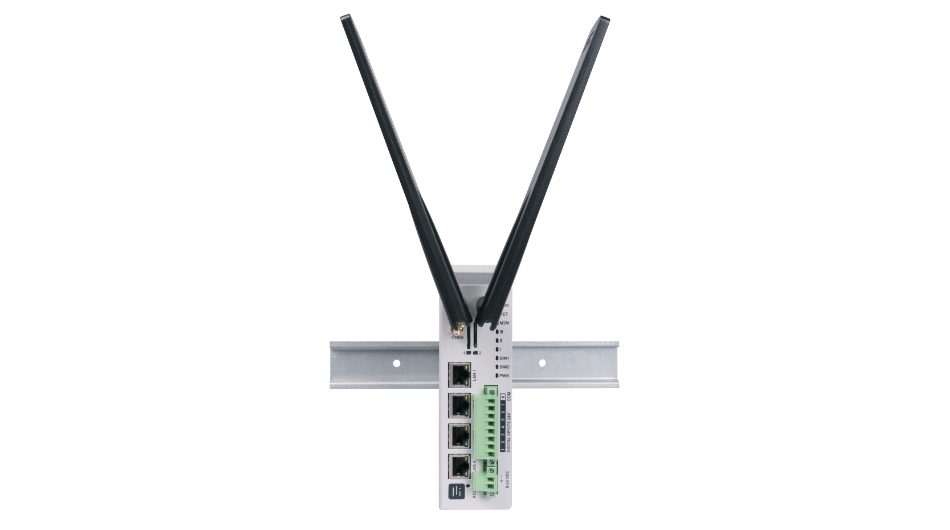

Antennas

• LTE main + aux

• WIFI (optional)

• GNSS (optional)

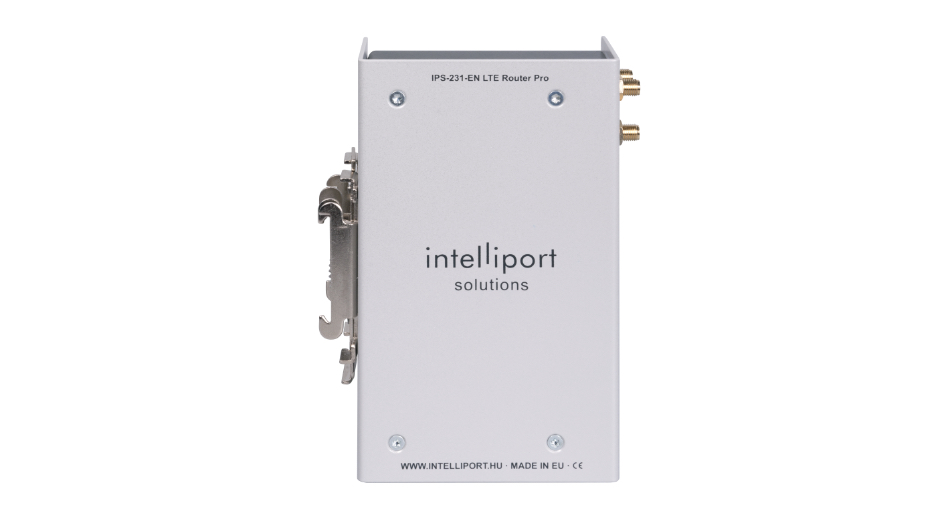

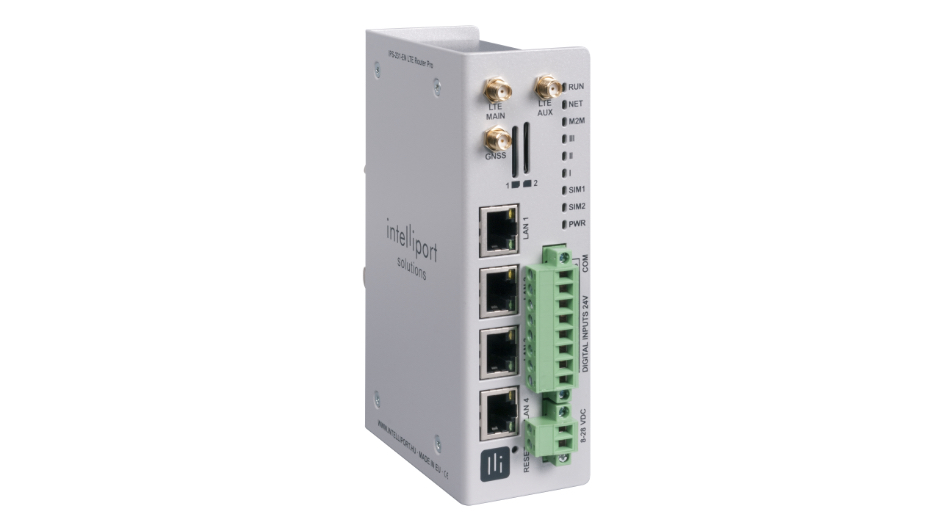

Construction

• Indoor version:
  • Housing: Anodised and powder-coated aluminium
  • Installation: DIN-rail or desktop
  • Operating Temperature: -30°C .. +70°C
  • IP Rate: IP30

• Outdoor version
  • Housing: Plastic
  • Installation: Wall-mount, pillar-mount
  • Operating Temperature: -30°C .. +70°C
  • IP Rate: IP67

Power

• Power supply interface (indoor version): 3.5 mm terminal block with screw lock

• Input voltage: 8-36 VDC (230 VAC option for outdoor version)

• Power consumption: Max: 7 VA

Standards

• CE-RED
