Cellular Network Comptibility

5G variant

• 3GPP Release 17 RedCap SA operation, Sub-6 GHz
• LAN, URLLC, Slicing
• Data Rates (max. theoretical)
  • 5G SA Sub-6 (64QAM) 150 Mbps (DL)/ 50 Mbps (UL)
  • 5G SA Sub-6 (256QAM) 220 Mbps (DL)/ 120 Mbps (UL)
  • LTE 150 Mbps (DL)/ 50 Mbps (UL)

• 5G NR SA Bands: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/30/38/40/41/ 48/66/70/71/77/78/79
• LTE FDD Bands: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/30/66/70/71
• LTE-TDD Bands: B34/38/39/40/41/42/43/48

LTE-A Cat-6 variant

• LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32
• LTE TDD: B38/B40/B41
• 2×CA:
  • B1+B1/B5/B8/B20/B28
  • B3+B3/B5/B7/B8/B20/B28
  • B7+B5/B7/B8/B20/B28
  • B20+B32; B38+B38; B40+B40; B41+B41
• 3G WCDMA: B1/B3/B5/B8

LTE Cat-4 variant

• 4G LTE FDD: B1/B3/B5/B7/B8/B20
• 4G LTE TDD: B38/B40/B41
• 3G: UMTS/HSPA+: B1/B5/B8
• 2G: GPRS/EDGE: B3/B8

LTE 450MHz (Cat-4) variant

• 4G LTE Cat-4 FDD: B3/7/20/31/72

LTE Cat-1 variant

• 4G LTE Cat-1: B1/B3/B7/B8/B20
• 3G: UMTS/HSPA+ B1/B8
• 2G: GPRS/EDGE B3/B8

LPWAN variant

• LTE CAT-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/ B27/B28/B31/B66/B72/B85 (incl. LTE-M 450MHz)
• LTE NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/ B31/B66/B85 (incl. LTE-M 450Mhz)
• 2G: GPRS/EDGE: B2/B3/B5/B8

2xSIM card / SIM chip

WIFI Access Point (optional)

Standard: IEEE802.11b/g/n

Frequency Range: 2.400 ~ 2.483GHz

Security

• WEP Open System
• WEP Shared Key, PSK
• WPA-PSK/WPA2-PSK Mixed Mode
• WPA2-PSK
• WPA2-EAP / WIFI-Enterprise / IEEE 802.1x authentication
• MAC Filtering

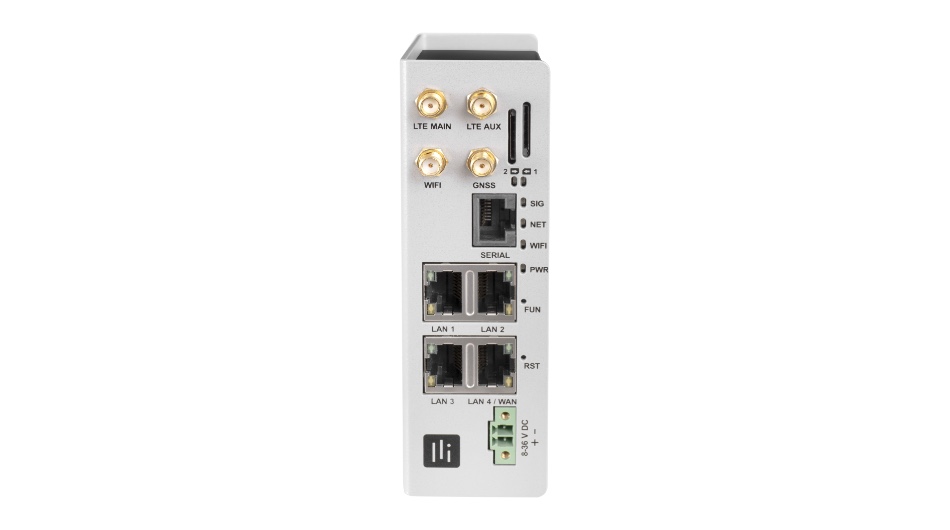

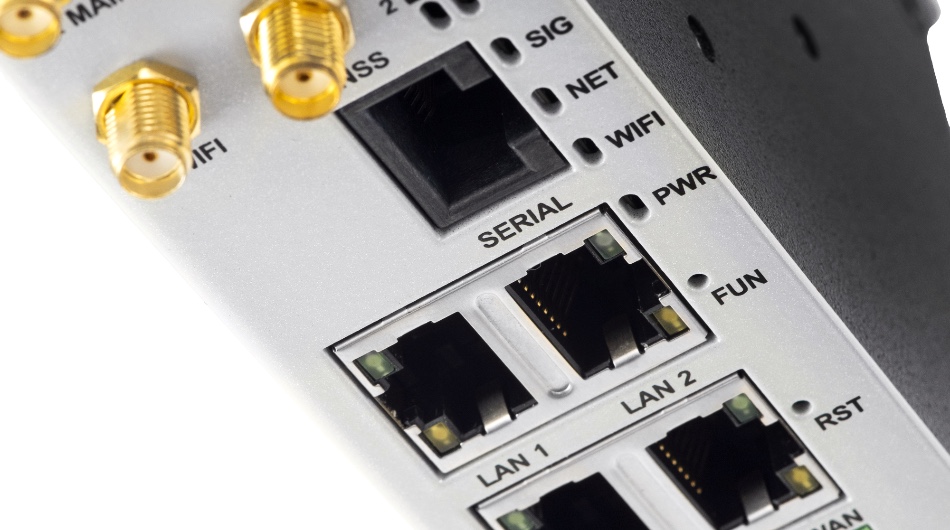

Interfaces

Ethernet

• 3 x Ethernet LAN port
• + 1 x Ethernet LAN/WAN port (configurable)
• IEEE 802.1x authentication

Serial

• 1 x RS232
• +1 x RS232/RS485 on the same connector

GNSS

• GPS
• GLONASS
• BDS
• GALILEO

System

• Built in hardware watchdog
• Built in network watchdog with failover management (dual SIM)
• EEPROM
• TPM (Trusted Platform Module)
• Device certificate (EAP-TLS)
• RADIUS-based authentication
• User management
• IPv4, IPv6
• Internal and external syslog
• Firewall, Zones, Port Forwarding, Traffic Rules
• NAT, DHCP
• DNS, NTP, FTP
• VPN, IPSec, RRI, GRE
• VLAN
• QoS
• Static Routing
• Dynamic Routing: BGP, NHRP, OSPF, etc

Management

• Intelliport M2M Management Platform
• Local and remote management via web user interface and SSH
• SNMP standard monitoring
• LwM2M

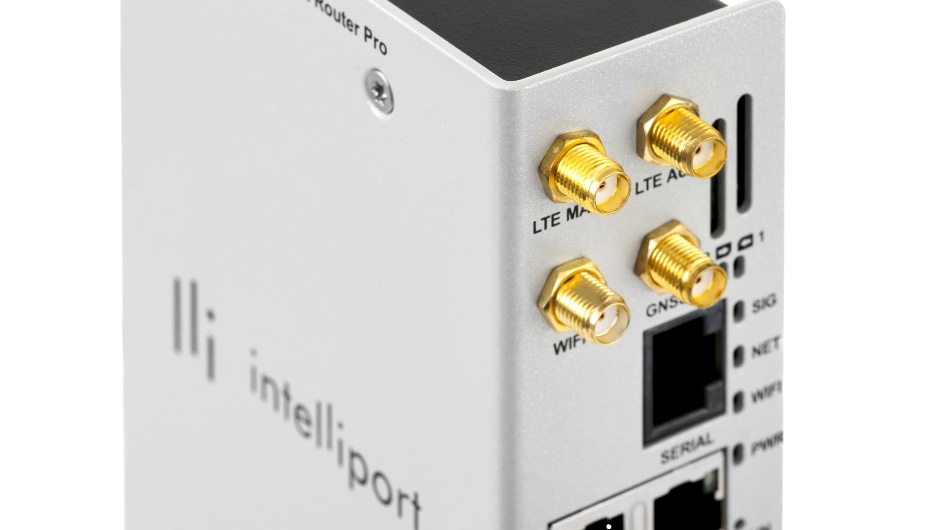

Antennas

• Cellular main + aux

• WIFI (optional)

• GNSS (optional)

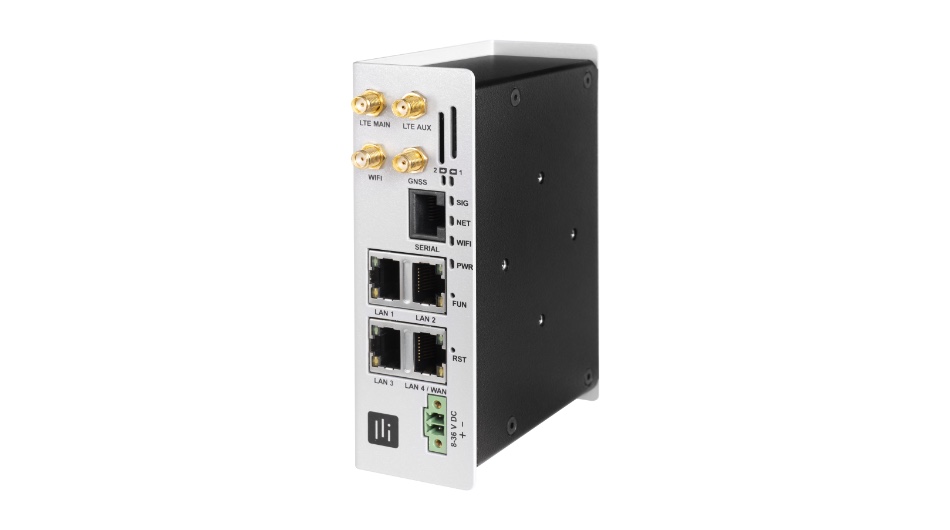

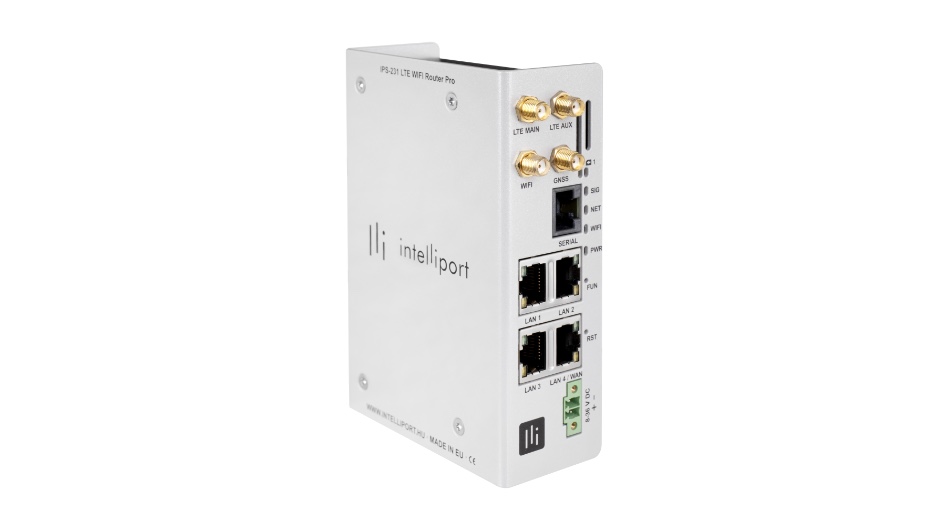

Construction

• Indoor version
  • Housing: Anodised and powder-coated aluminium

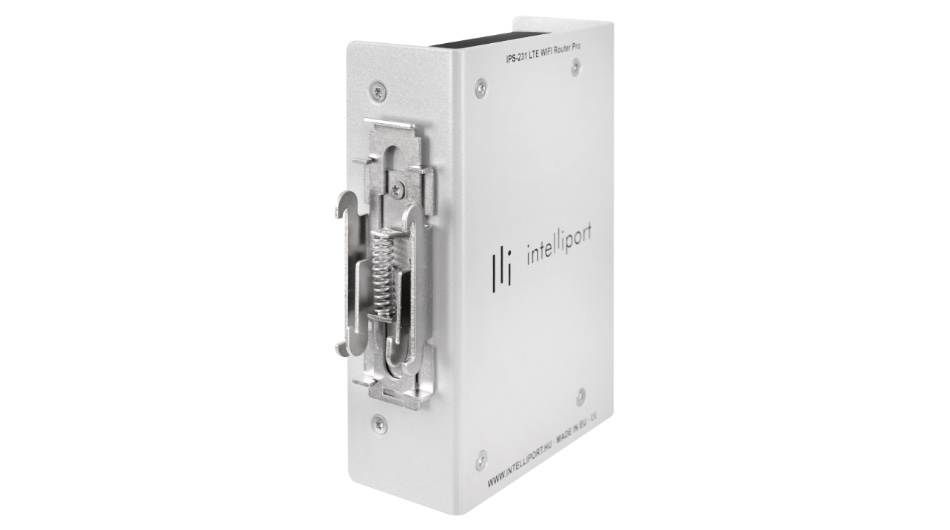

  • Installation: DIN-rail or desktop
  • Operating Temperature: -30°C .. +70°C
  • IP Rate: IP30
• Outdoor version
  • Housing: Plastic
  • Installation: Wall-mount, pillar-mount
  • Operating Temperature: -30°C .. +70°C
  • IP Rate: IP67

Power

• Power supply interface (indoor version): 3.5 mm terminal block with screw lock
• Input voltage: 8-36 VDC (230 VAC option for outdoor version)
• Power consumption: Max: 7 VA

Standards

• CE-RED
