Typical Applications

• Remote reading of smart electricity meter’s P1 port
• Remote monitoring and configuration of equipment with Modbus interface (inverter, storage, etc.)

Communication technology

LTE Cat1 variant

• LTE Cat1: B1/B3/B7/B8/B20

LTE Cat-M / NB-IoT variant

• LTE CAT-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25
  B26/B27/B28/B31(450MHz)/B66/B72(450MHz)/B85
• LTE NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/ B28/B31(450MHz)/B66/B85

Functions

• Remote reading of P1 port
• Remote communication via serial port
• Secure and reliable communication with remote server
• Configurable data collection frequency (default: 10sec)
• Configurable period of temporary data storage (default: 1 day)
• MQTT, HTTPS protocol support
• Modbus RTU support

Interfaces

• P1 port (RJ12)
• RS232/485 serial (Modbus RTU) port (RJ45)

Provisioning and Management

• Remotely using Intelliport M2M Platform
• Locally via Serial port

Antenna

1 x SMA

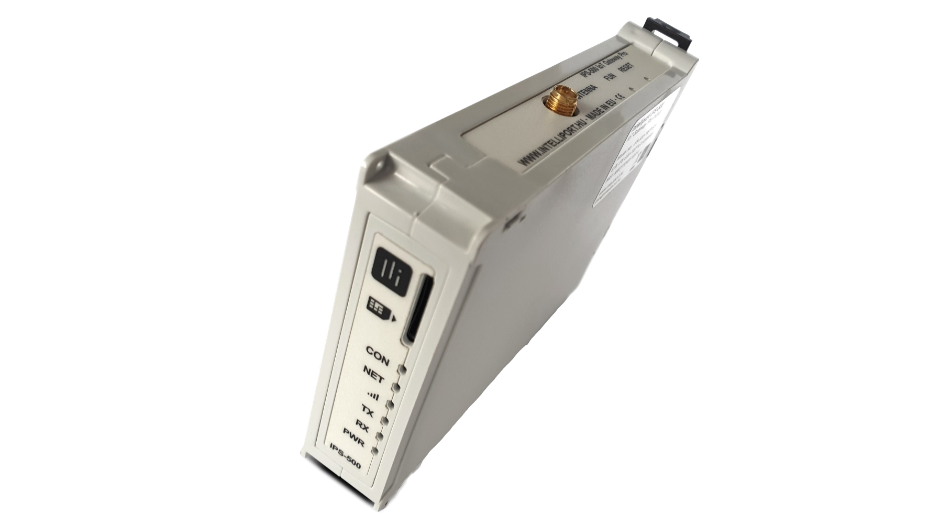

Construction

Indoor Version:

• Size: 70 x 85 x 60 mm
• Operating Temperature: -40°C .. +70°C
• IP Rating: IP20
• DIN rail mount

Outdoor version:

• Size: 150 x 110 x 170 mm
• Operating Temperature: -40°C .. +70°C
• IP Rating: IP67
• Wall mount

Power

• 5 VDC from P1 port
• 3-17 VDC from external power supply
• Max. power consumption: 1,5 VA
